Outdoor or indoor use.
With oil resistance, acid resistance, corrosion resistance, aging resistance,explosion proof, waterproof, dust proof performance, good flexibility,compact structure, strong connection.
According to user requirements, the pipe joint thread can be configured withISO, G and NPT thread.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB
and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and
IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68.
? Operating Temperature Range: -60°C to +140°C.
? Material: stainless steel 、casting steel (galvanized) 、marine grade copper
free aluminium light alloy.
? Ex-marking:
II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68 -

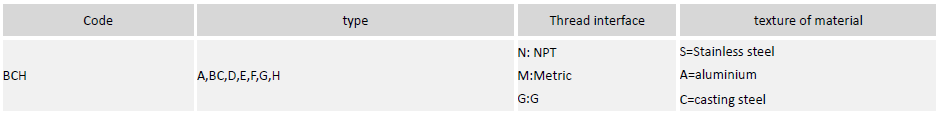

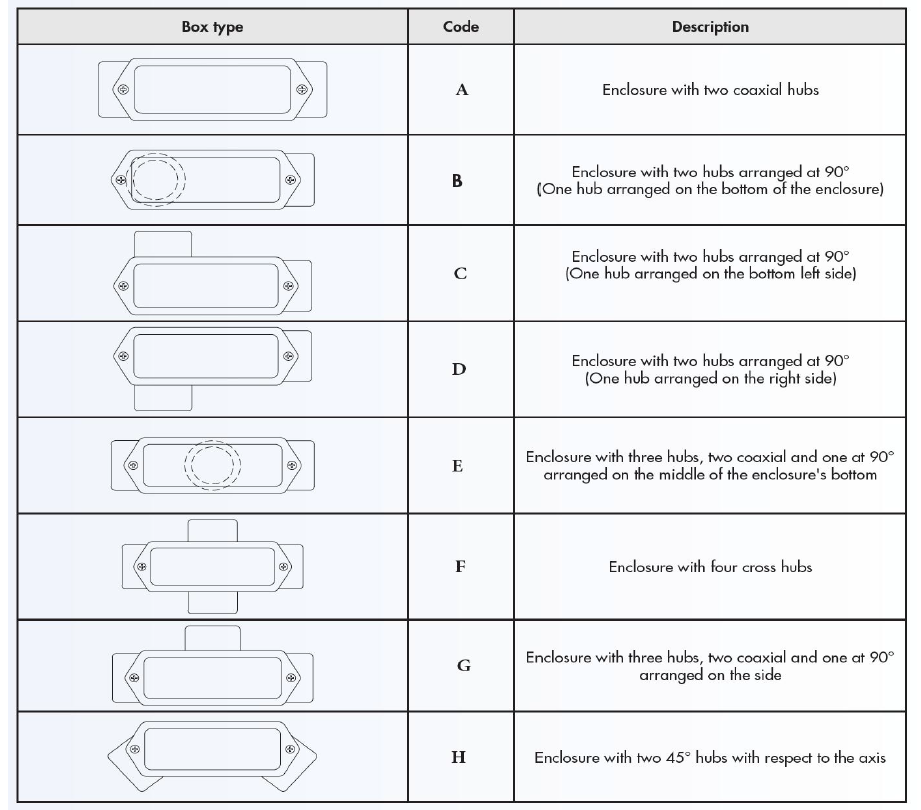

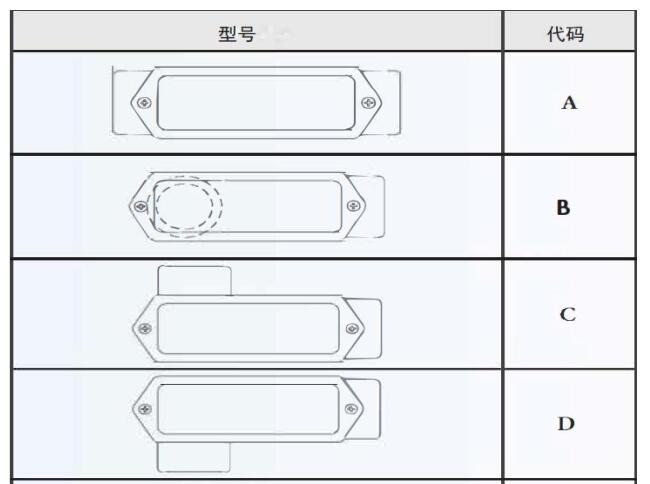

Model
-

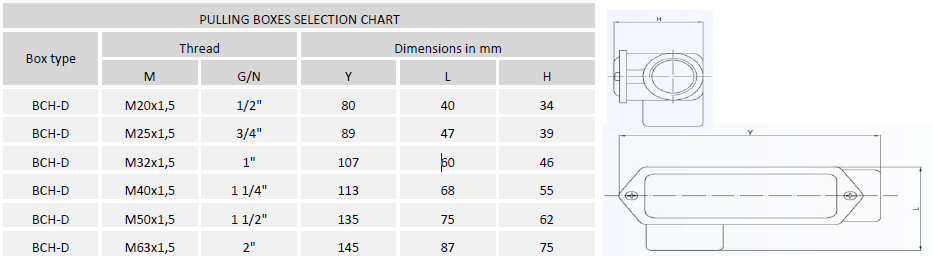

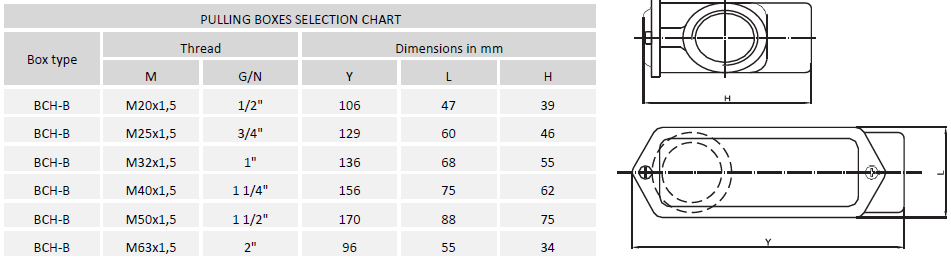

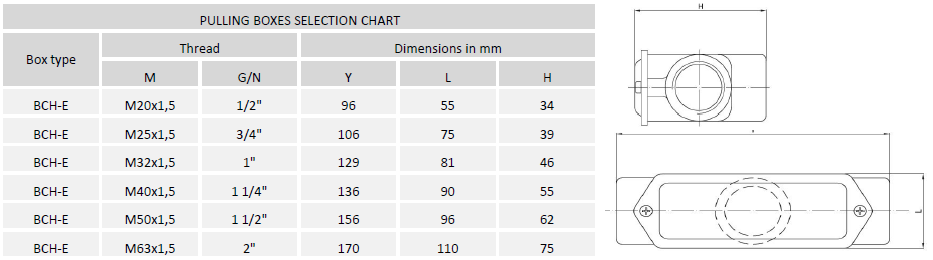

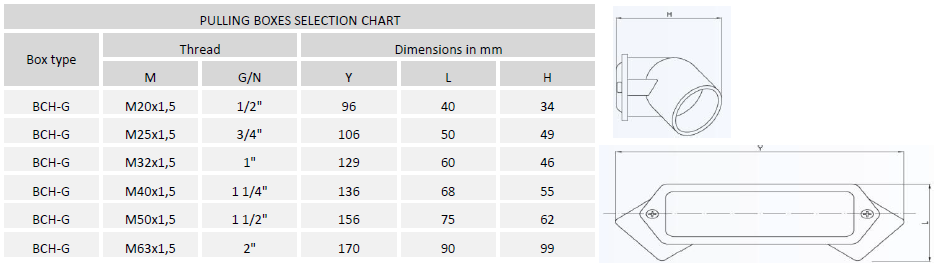

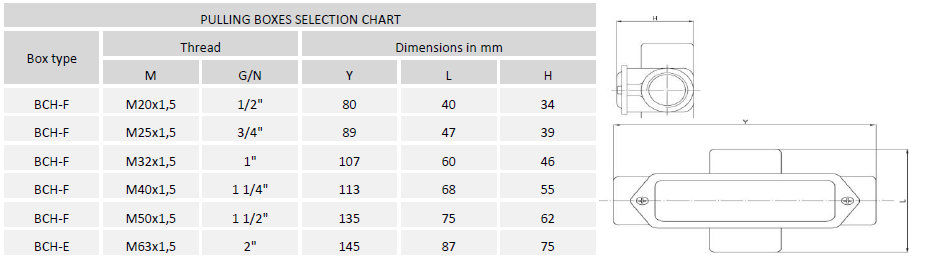

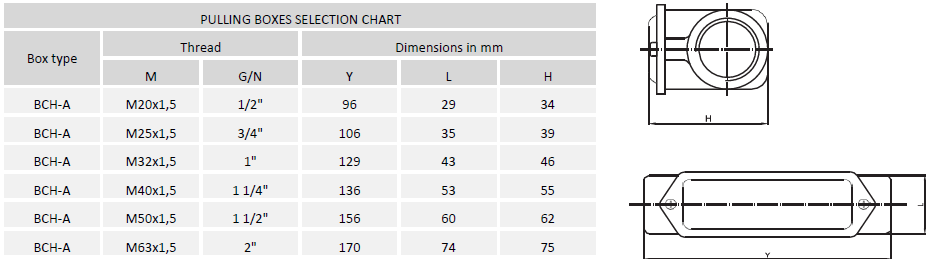

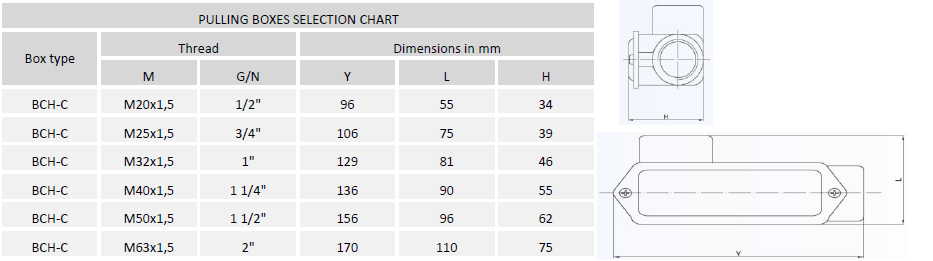

Drawings
-

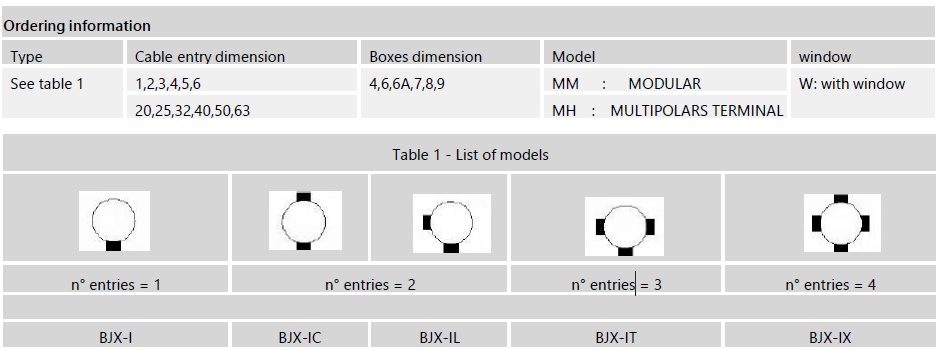

Ordering information
|
