? Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures.
? Limit explosions to the sealed off enclosure.
? Limit precompression or pressure "piling" in conduit systems.Sealing fittings are required:
? At each entrance to an enclosure housing an arcing or sparking device when used in Class I, Division 1 and 2 hazardous locations. To be located as close as practicable and, in no case, more than 18" from such enclosures.
? At each conduit entrance of 2" size or larger to an enclosure or fitting housing terminals, splices or taps when used in Class I,Division 1 hazardous locations. To be located as close as practicable and, in no case, more than 18" from such enclosures.
? In conduit systems when leaving Class I, Division 1 or Division 2 hazardous locations
? In cable systems when the cables either do not have a gas/vaportight continuous sheath or are capable of transmitting gases or vapors through the cable core when those cables leave the Class I, Division 1 or Division 2 hazardous locations.
Service hotline：
0523-88317000 88318288
-
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68.
? Operating Temperature Range: -60°C to +140°C.
? Material: brass, nickel plated brass or stainless steel 304、316L.
? Ex-marking: II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68
-

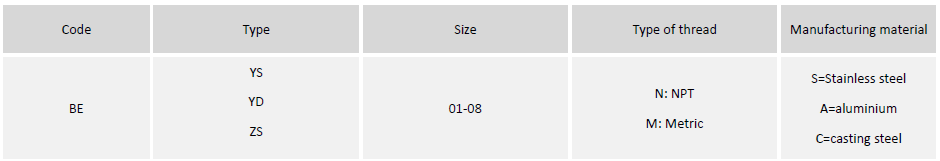

ordering information
-

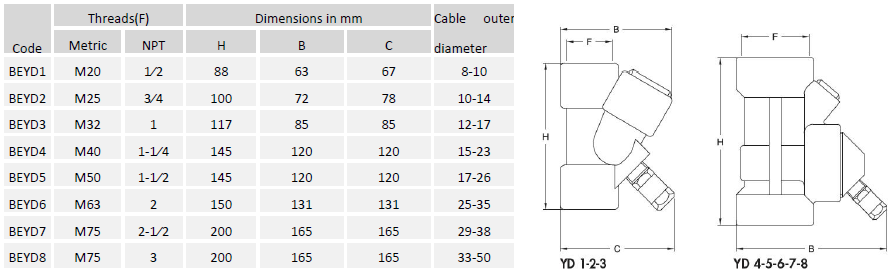

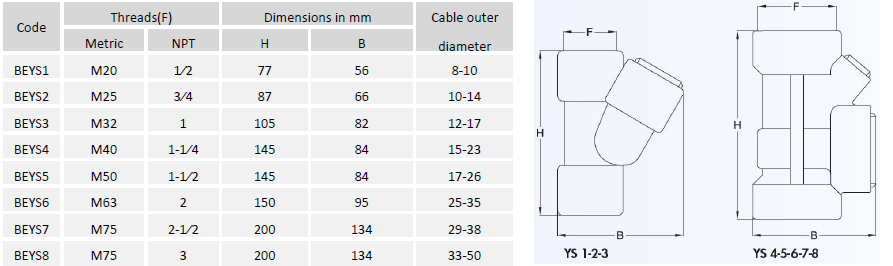

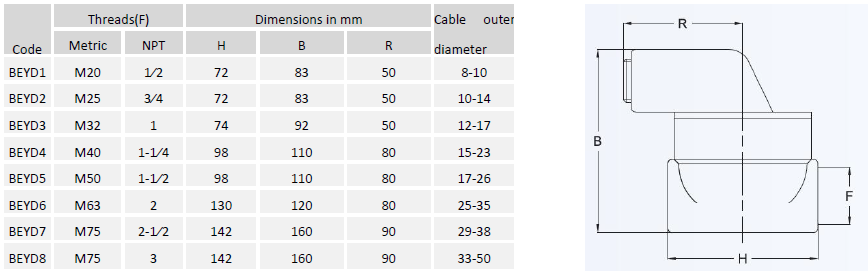

Drawings
-

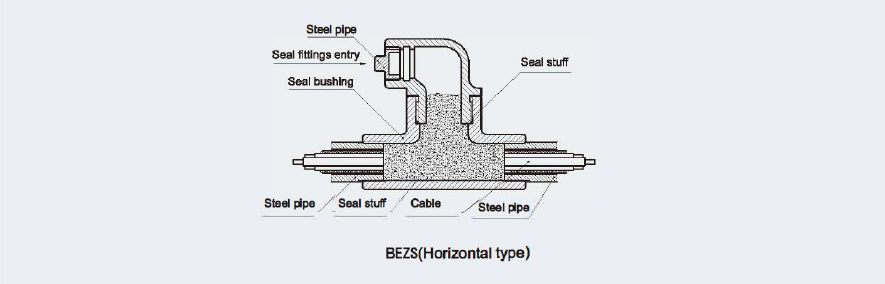

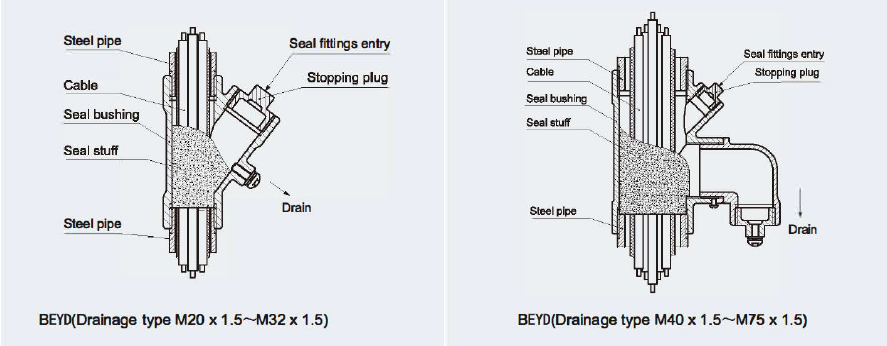

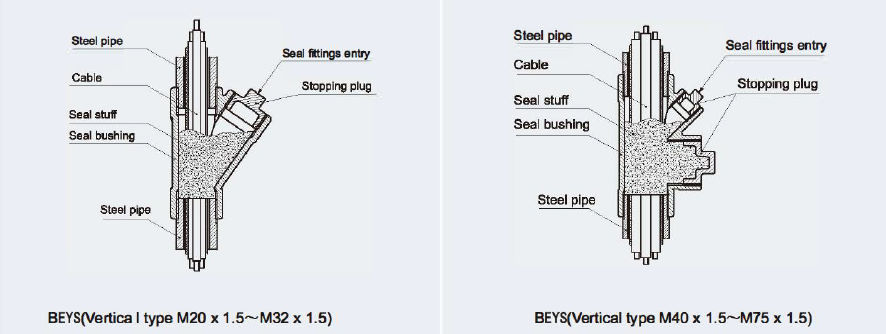

Schematic diagram
|
